How to Choose the Right Crushing Equipment for Different Rock Types? Complete Selection Guide
How to Choose the Right Crushing Equipment for Different Rock Types? Complete Selection Guide
Introduction
In the mining, construction aggregate, highway and railway, water conservancy, and urban infrastructure industries, stone crushing equipment is an important core equipment for the production of sand and gravel aggregate.
Since different rock types show significant differences in hardness, moisture content, mud content, abrasiveness, and compressive strength, the production line configuration scheme also needs to be designed specifically.
Reasonable equipment selection can not only improve production efficiency, but also:
Reduce equipment wear
Shorten downtime
Lower maintenance costs
Improve finished aggregate quality
Optimize later operating costs

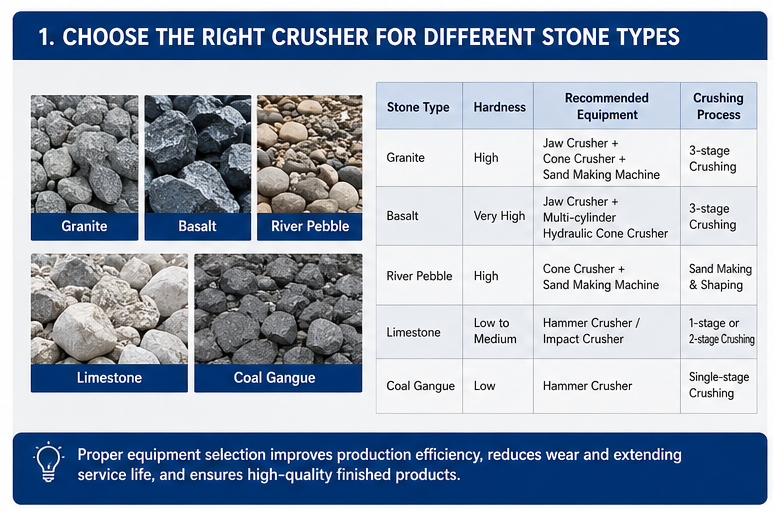

Common Rock Types and Equipment Selection Reference Table
| Rock Type | Hardness Characteristics | Common Problems | Recommended Crushing Solution | Recommended Cone Crusher Type | Recommended Conveying Method | Recommended Process |
|---|---|---|---|---|---|---|
| Granite | High hardness, high silica content | Easy to wear | Jaw Crusher + Cone Crusher + Sand Making Machine | Multi-cylinder Hydraulic Cone Crusher | Heavy-duty Belt Conveyor | Three-stage Crushing |
| Basalt | Ultra-high hardness | High wear parts consumption | Jaw Crusher + Multi-cylinder Cone Crusher | Multi-cylinder Hydraulic Cone Crusher | Heavy-duty Belt Conveyor | Three-stage Crushing |
| River Pebble | High hardness, smooth surface | High sand-making difficulty | Cone Crusher + Sand Making Machine | Single-cylinder/Multi-cylinder Hydraulic Cone Crusher | Belt Conveyor | Sand Making & Shaping |
| Limestone | Medium to low hardness | Excessive fines | Heavy Hammer Crusher / Impact Crusher | No Cone Crusher Needed | Ordinary Belt Conveyor | Single-stage or Two-stage Crushing |
| Coal Gangue | Fragile, high moisture | Material blockage | Heavy Hammer Crusher | No Cone Crusher Needed | Anti-blocking Conveying System | One-time Molding |
Analysis of Different Rock Type Production Line Configurations
Granite Production Line Configuration
Granite is a high-hardness rock with high requirements for equipment wear resistance.
| Item | Recommended Solution |
|---|---|
| Coarse Crushing Equipment | Jaw Crusher |
| Medium Crushing Equipment | Multi-cylinder Hydraulic Cone Crusher |
| Sand Making Equipment | Vertical Shaft Impact Sand Making Machine |
| Recommended Wear Parts | High Manganese Steel Jaw Plates, High Chromium Alloy Liners |
| Conveying Method | Heavy-duty Belt Conveyor |
| Application Fields | Railway Aggregate, High-grade Building Aggregate |
Configuration Advantages
High degree of automation
Good finished product particle shape
Strong wear resistance
Suitable for continuous high-intensity production
Limestone Production Line Configuration
Limestone has relatively low hardness, and production costs are relatively lower.
| Item | Recommended Solution |
|---|---|
| Recommended Equipment | Heavy Hammer Crusher, Impact Crusher |
| Main Advantages | One-time molding, low investment cost |
| Finished Product Characteristics | Uniform particle shape, low fines |
| Maintenance Difficulty | Relatively low |
| Conveying Method | Ordinary Belt Conveyor |
| Applicable Industries | Cement Plants, Construction Aggregate |
Configuration Advantages
Low equipment investment
Low energy consumption
Simple later maintenance
Longer wear parts lifespan
River Pebble Production Line Configuration
River pebbles have smooth surfaces with high requirements for sand-making equipment.
| Item | Recommended Solution |
|---|---|
| Coarse Crushing | Jaw Crusher |
| Medium Crushing | Single-cylinder or Multi-cylinder Hydraulic Cone Crusher |
| Sand Making | Vertical Shaft Impact Sand Making Machine |
| Key Requirements | Strong wear resistance |
| Recommended Conveying | Heavy-duty Wear-resistant Belt |
| Finished Product Use | High-quality Manufactured Sand |
Configuration Advantages
Good sand-making effect
Reasonable finished product gradation
Stable automated control

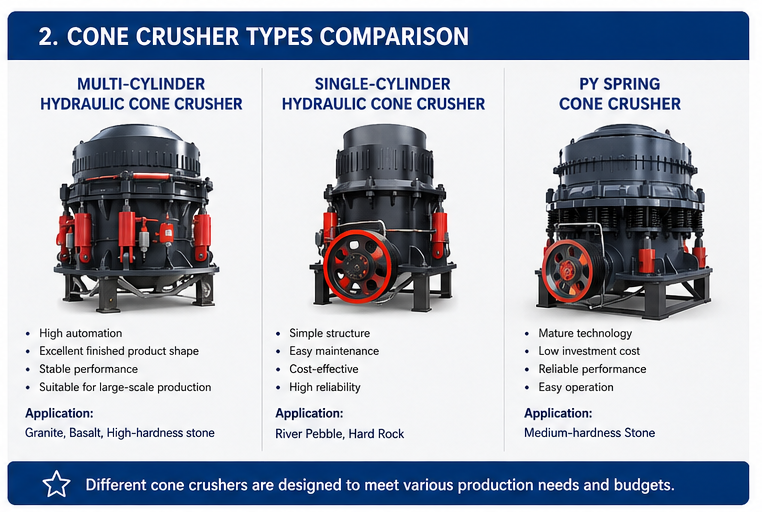

How to Choose a Cone Crusher
Different types of cone crushers are suitable for different production needs.
| Cone Crusher Type | Main Characteristics | Applicable Materials | Applicable Projects |
|---|---|---|---|
| Multi-cylinder Hydraulic Cone Crusher | High automation, good particle shape | Granite, Basalt | Large-scale Aggregate Production Lines |
| Single-cylinder Hydraulic Cone Crusher | Simple structure, easy maintenance | River Pebble, Hard Rock | Medium to Large Mines |
| PY Spring Cone Crusher | Low cost, mature structure | Medium-hardness Rock | Traditional Mining Projects |
Advantages of Hydraulic Chamber Opening Design
Modern cone crushers and impact crushers increasingly adopt hydraulic chamber opening structures.
| Functional Advantage | Actual Effect |
|---|---|
| Hydraulic Quick Opening Cover | Shortens downtime |
| Easy Wear Parts Replacement | Reduces labor costs |
| Automatic Cavity Clearing | Reduces blockage risk |
| Simple Maintenance Operation | Improves equipment safety |
| High Maintenance Efficiency | Improves production continuity |
Compared with traditional mechanical chamber opening methods, hydraulic systems can significantly reduce maintenance difficulty.
Wear Parts Replacement Cycle Reference
Different rock types have a significant impact on wear parts lifespan.
| Material Type | Common Wear Parts | Replacement Cycle Reference | Recommended Material |
|---|---|---|---|
| Granite | Jaw Plates | 2-4 months | High Manganese Steel |
| Granite | Cone Crusher Crushing Wall | 3-6 months | High Chromium Alloy |
| River Pebble | Sand Making Machine Throwing Head | 1-3 months | Alloy Wear-resistant Material |
| Limestone | Hammer Head | 4-8 months | High Chromium Hammer Head |
| Limestone | Impact Plate | Over 6 months | Wear-resistant Alloy Steel |
Different Site Layout Schemes
Production line design is not only about equipment combination, but also needs to consider on-site routing and logistics transportation.
| Site Type | Recommended Layout | Main Advantages |
|---|---|---|
| Mountain Mine | High-low Elevation Layout | Utilizes gravity to reduce energy consumption |
| Flat Site | Linear Layout | Convenient for later capacity expansion |
| Confined Site | Compact Layout | Saves floor space |
| Temporary Project | Mobile Crushing Station | Convenient for site transfer |

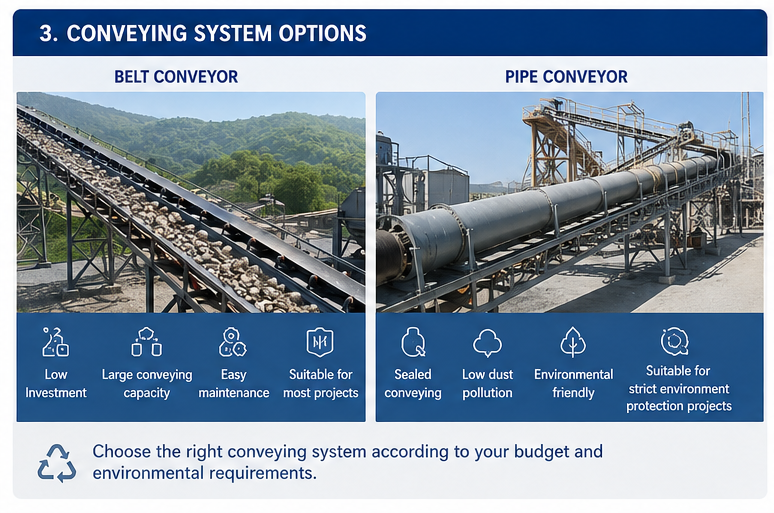

How to Choose a Conveying System
The conveying system directly affects production efficiency and environmental performance.
| Conveying Method | Advantages | Disadvantages | Applicable Scenarios |
|---|---|---|---|
| Belt Conveyor | Low investment, large conveying capacity | More dust | Ordinary mining projects |
| Pipeline Conveying | Strong sealing, high environmental performance | Higher investment | Urban surroundings, environmental projects |

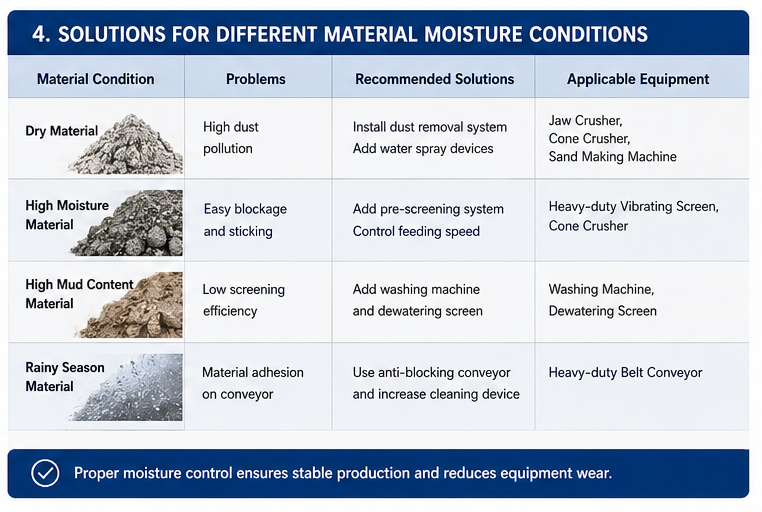

Selecting Equipment Based on Material Moisture
Moisture and mud content directly affect production stability.
| Material Condition | Common Problems | Recommended Solutions |
|---|---|---|
| Dry Material | Excessive dust | Add spray dust suppression system |
| High Moisture Material | Easy to block | Add pre-screening system |
| High Mud Content Material | Decreased screening efficiency | Configure sand washing machine and dewatering screen |
| Rainy Season Material | Conveying adhesion | Use anti-blocking conveying design |
Different Capacity Production Line Recommendations
| Production Scale | Recommended Capacity | Applicable Customers |
|---|---|---|
| Small Production Line | 50-100 tons/hour | Small Mines |
| Medium Production Line | 150-300 tons/hour | Commercial Aggregate Projects |
| Large Production Line | Over 500 tons/hour | Large Mines and Infrastructure Projects |
Common Rock Type Production Line Configuration Schemes
| Production Line Type | Main Equipment Configuration |
|---|---|
| Granite Production Line | Vibrating Feeder + Jaw Crusher + Cone Crusher + Vibrating Screen + Conveyor |
| Limestone Production Line | Vibrating Feeder + Heavy Hammer Crusher + Vibrating Screen |
| River Pebble Sand Making Line | Jaw Crusher + Cone Crusher + Sand Making Machine + Sand Washing Machine |
Conclusion
Equipment Selection
Process Design
Site Layout
Installation and Commissioning
After-sales Service
Helping customers achieve more efficient, stable, and environmentally friendly sand and gravel aggregate production.
